CardioHolter Complete System with 1 Recorder

Outstanding PC-based Holter system can be integrated with other CardioCard modules or used as standalone. Uses Cardio-DB database and EMR record formats. Digital SD flash card recording and download.

Automatic analysis: retrospective and prospective, allows changing of analysis classification criteria by user while in database. Full disclosure and summary printing and viewing on screen of all data.

Reports to screen and/or printer: Sumary of test with demographics, HR values, ST values, HRV calculations, # abnormals, etc. 10 sec. calibrated page for any selected event. Autoscroll playback to scan entire test. Color coded abnormal beats, VE tables and graphs. Event/episode reports, hourly HR, ST, VE tables. R-R dispersion graphs, ST graphs, ST severity table and much more.

Device Options and Features: ONE (1) Digital 24-96 hour Full Disclosure Recorder

Free Training and Toll-free Technical Support

One AA Alkaline Battery (disposable)

Digital Recorder: 3.45"W x 2.6"H x .75"D (5 ounces with battery) with 5-lead patient cable

Includes Software and Database Management System (no additional cost)

Two-year Software Warranty, Two-year Recorder Warranty with Free Upgrades (during two-year warranty period)

User Selectable Arrhythmia Variable Settings​

Standard Reports to Screen or Printer: Summary of Test with Diagnostics, Event/Episode Reports, Full Disclosure of all ECG’s

Heart Rate Variability Histograms, R-R Dispersion Graphs, ST Graphs, VF Tables/Graphs

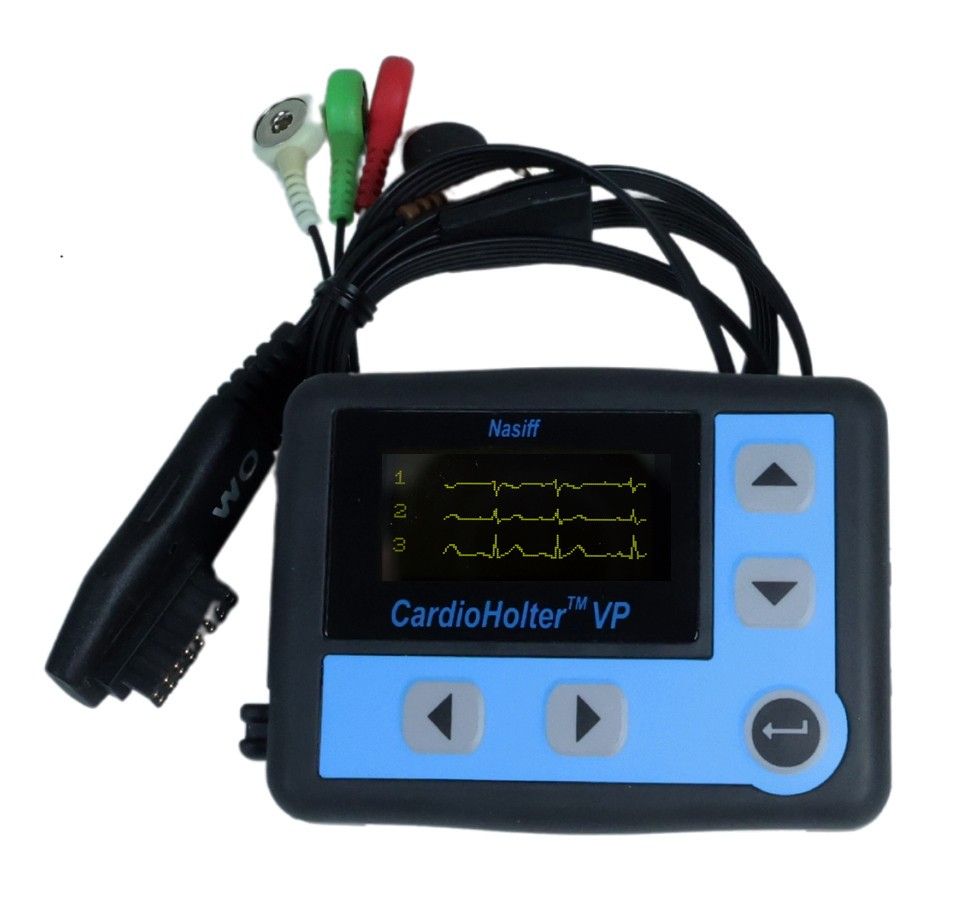

Recorder has 3 Channel Display to Preview ECG Waveform for Patient Hook-Up, 5- leads, SD Card, Belt and User Manual

Storage of Patient ECG Records to Hard Drive or any Storage Medium

Complex Classifications: PVC, VE Run, Couplet, Triplet, Bigeminy, Trigeminy, R on T, SVPB, SVE Run, Pauses, PE, AFib, Bradycardia, Tachycardia

For Recorder: Removable SD Memory Cards (standard SD compact card) Uses SD Compact Card Slot as Download Interface​ or SD Card Reader

On-screen Condensed/Zoom View: 1 or 10 minutes, 2 or 4-second Intervals

Includes all software, 1 Flash digital recorder with cable and pouch, users manual, flash card reader, built-in help on system, unlimited telephone support and training. 2 year warranty.
